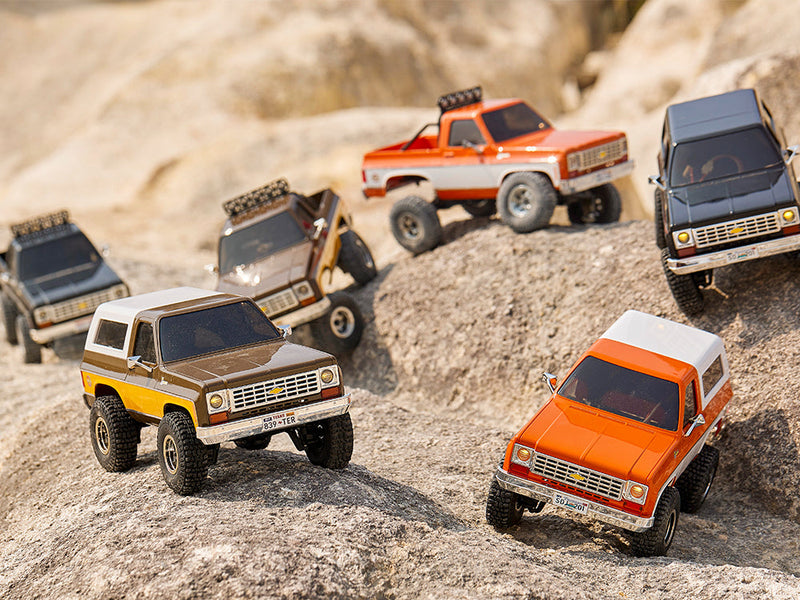

Remote control (RC) crawlers have gained immense popularity among hobbyists and enthusiasts due to their ability to tackle rough terrains and obstacles that standard RC vehicles cannot manage. These rugged machines are designed to mimic the capabilities of full-sized rock crawlers, offering a thrilling off-road experience. Understanding the main components of an RC crawler is essential for both beginners and seasoned hobbyists to ensure optimal performance and maintenance. Here’s a detailed look at the critical parts that make up an RC crawler:
- Chassis
The chassis forms the backbone of the RC crawler, providing a sturdy framework to mount all other components. Typically made from materials like aluminum, carbon fiber, or high-grade plastic, the chassis must withstand significant stress and strain. Key aspects of the chassis design include rigidity, weight distribution, and mounting points for other parts such as the suspension, motor, and electronics.
- Suspension System
A robust suspension system is crucial for an RC crawler's ability to navigate uneven and rocky terrains. The suspension system includes:
- Shocks and Springs:These components absorb impacts and maintain tire contact with the ground, enhancing stability and traction. Adjustable shocks and springs allow for tuning to suit different terrains.
- Linkages:These connect the axles to the chassis and enable the wheels to move independently, which is vital for maneuvering over obstacles.
- Axles and Driveshafts
Axles and driveshafts are essential for transferring power from the motor to the wheels in RC crawlers. Most crawlers use solid axles, which provide greater durability and stability on off-road terrain compared to independent suspension systems. However, some manufacturers opt for independent suspension to offer a more realistic and precise simulation, despite solid axles being the preferred choice for rugged conditions.
Driveshafts are vital components in RC crawlers, connecting the transmission to the axles to deliver power to the wheels. Different types of driveshafts are used depending on the terrain and vehicle performance needs.
Types of Driveshafts:
- Plastic Driveshafts: Lightweight and flexible, but less durable under high torque.
- Metal Driveshafts (Aluminum, Steel): Strong and durable, ideal for handling higher torque but heavier.
- Telescoping Driveshafts: Adjust for suspension travel, perfect for extreme terrains.
- U-joint Driveshafts: Allow high articulation and handle sharp angles effectively.
- CV (Constant Velocity) Driveshafts: Provide smooth power delivery at varying angles, reducing vibration.
- Splined Driveshafts: Ensure precise power transfer with minimal slop.
Choosing the right driveshaft depends on the RC crawler's terrain and setup, with plastic suited for lighter use, metal for durability, and telescoping or CV types excelling in off-road performance.
- Motor and ESC (Electronic Speed Controller)
The motor and ESC work together to control the crawler's speed and torque. There are two main types of motors used in RC crawlers:
- Brushed Motors:These are cost-effective and offer good torque, making them popular among beginners.
- Brushless Motors:These are more efficient, powerful, and have a longer lifespan but come at a higher cost.
The ESC regulates the power supplied to the motor, providing smooth acceleration and deceleration, which is crucial for precise control over rugged terrains.
- Transmission
The transmission system manages the power generated by the motor and delivers it to the wheels. RC crawlers often feature multi-speed transmissions, allowing users to switch between high-speed and low-speed settings. The low-speed setting offers greater torque for climbing obstacles, while the high-speed setting enables faster movement over less challenging terrain.
- Tires and Wheels
Tires and wheels are fundamental to an RC crawler’s performance. Off-road tires with deep treads and soft rubber compounds provide excellent grip and traction on various surfaces, including rocks, mud, and sand. The wheels are usually made from durable materials like aluminum or reinforced plastic to withstand the rigors of off-road driving.
- Steering System
The steering system includes the servo, linkages, and the steering mechanism itself. The servo converts electrical signals from the transmitter into mechanical movement, turning the wheels. A high-torque servo is preferred for RC crawlers to ensure precise and responsive steering, even under heavy loads.
- Battery and Charger
The battery powers the motor, ESC, and other electronic components. Lithium Polymer (LiPo) batteries are commonly used due to their high energy density and lightweight properties. It is essential to pair the battery with a compatible charger to ensure safe and efficient charging.
- Radio System
The radio system includes the transmitter and receiver, allowing the user to control the RC crawler wirelessly. Modern systems often operate on 2.4GHz frequency, providing a reliable and interference-free connection with a good range.
- Body Shell
The body shell provides a realistic appearance and protects the internal components from dirt, water, and damage. Made from durable materials plastics, body shells normally fall into two categories: Lexan or hard body. Lexan is a light, flexible and durable material, making them ideal for good performance. Hard body shells can make the car top-heavy, but there is no comparison when it comes to realistic details. From there, body shells can be customized with paint and decals to reflect the owner's style.
Conclusion
Each component of an RC crawler plays a vital role in its overall performance and capability. Understanding these parts helps hobbyists make informed decisions when building, upgrading, or maintaining their RC crawlers, ensuring they can tackle the toughest terrains with confidence and precision. Whether you’re a beginner or a seasoned crawler enthusiast, knowing the ins and outs of your vehicle will enhance your off-road adventures and keep your crawler running at its best.
